TSCHAN联轴器TNS S-LSt (short/long hub or 2 long hubs)同驰联轴器
Dimensions / Technical data TKN = Nom. transmissible torque TKmax = Max. transmissible torque of the coupling nmax = Max. rotation speed d1kmax = Max. bore diameter d1 with keyway acc. to DIN 6885-1 d2kmax = Max. bore diameter d2 with keywa
产品详情

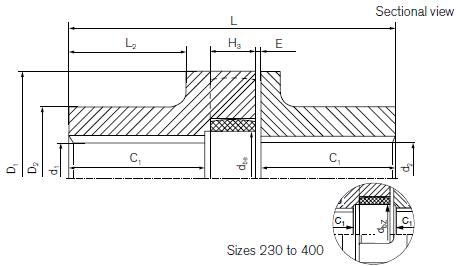

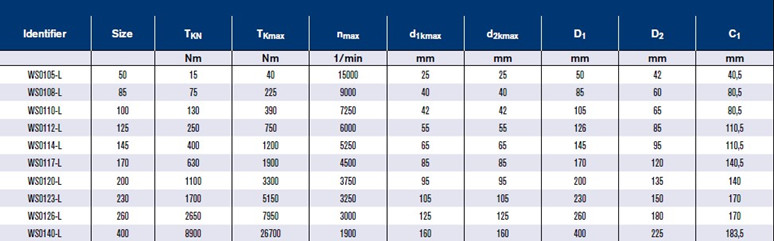

Dimensions / Technical data
TKN = Nom. transmissible torque
TKmax = Max. transmissible torque of the
coupling
nmax = Max. rotation speed
d1kmax = Max. bore diameter d1 with keyway acc.
to DIN 6885-1
d2kmax = Max. bore diameter d2 with keyway acc.
to DIN 6885-1
D1 = Outer diameter
D2 = Outer diameter hub
C1 = Guided length in hub bore
L = Total length
L2 = Length on the hub
E = Gap width between left and right
component
FE = Tolerance of the gap width E
H3 = Length of damping module
dbe = Inner diameter elastic intermediate ring
Gwub = Weight, unbored
